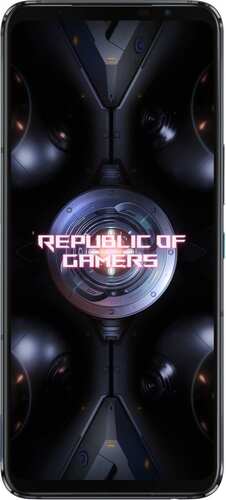

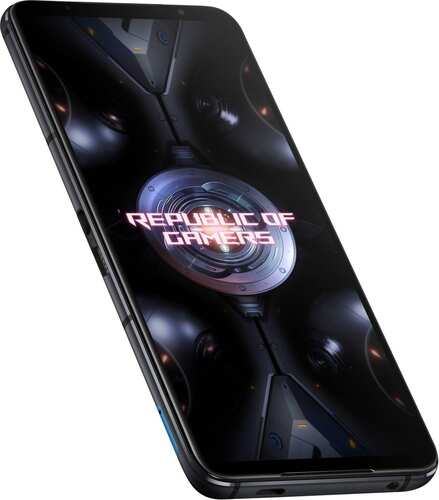

Asus ROG Phone 5 Ultimate

Asus ROG Phone 5 Ultimate Specifications

• Key Specs
• RAM 18 GB
• Processor Qualcomm Snapdragon 888
• Display 6.78 inches (17.22 cm)
• Rear Camera 64 MP + 13 MP + 5 MP
• Front Camera 24 MP
• Battery 6000 mAh

• Battery
• Removable No
• Type Li-Polymer
• Quick Charging Yes, Hyper, 65W: 100 % in 52 minutes
• USB Type-C Yes
• Capacity 6000 mAh

• Design
• Weight 238 grams
• Height 172.8 mm
• Width 77.2 mm
• Colours Storm White
• Thickness 10.2 mm
• Build Material Back: Gorilla Glass

• Display
• Brightness 800 nits
• Refresh Rate 144 Hz
• Screen Size 6.78 inches (17.22 cm)
• Bezel-less display Yes
• Touch Screen Yes, Capacitive Touchscreen, Multi-touch
• Screen Protection Corning Gorilla Glass
• Pixel Density 395 ppi
• Screen to Body Ratio (calculated) 81.95 %
• Resolution 1080x2448 px (FHD+)
• Display Type AMOLED
• Aspect Ratio 20:4:9
• HDR 10 / HDR+ support Yes, HDR 10+

• Front Camera
• Video Recording 1920x1080 @ 30 fps
• Resolution 24 MP f/2.5, Wide Angle, Primary Camera(27 mm focal length, 0.9µm pixel size)
• Camera Setup Single

• General
• Launch Date March 10, 2021
• Custom UI ROG UI
• Operating System Android v11
• Brand Asus

• Main Camera
• Video Recording 7680x4320 @ 30 fps 3840x2160 @ 30 fps
• Shooting Modes Continuous Shooting High Dynamic Range mode (HDR)
• Resolution 64 MP f/1.8, Wide Angle, Primary Camera(26 mm focal length, 1.7" sensor size, 0.8µm pixel size)13 MP f/2.4, Ultra-Wide Angle Camera(11 mm focal length)5 MP f/2.0, Macro Camera
• Camera Features Digital Zoom Auto Flash Face detection Touch to focus
• Settings Exposure compensation, ISO control
• Flash Yes, LED Flash
• Image Resolution 9000 x 7000 Pixels
• Sensor IMX686, Exmor-RS CMOS Sensor
• Camera Setup Triple
• Autofocus Yes

• Multimedia
• Loudspeaker Yes
• FM Radio No
• Audio Jack 3.5 mm

• Network & Connectivity
• Wi-Fi Yes, Wi-Fi 6 (802.11 a/b/g/n/ac/ax) 5GHz, MIMO
• SIM 2 4G Bands: TD-LTE 2600(band 38) / 2300(band 40) / 2500(band 41) / 2100(band 34) / 1900(band 39) / 3500(band 42) FD-LTE 2100(band 1) / 1800(band 3) / 2600(band 7) / 900(band 8) / 700(band 28) / 1900(band 2) / 1700(band 4) / 850(band 5) / 700(band 13) / 700(band 17) / 850(band 18) / 850(band 19) / 800(band 20) / 1900(band 25) / 850(band 26) / 700(band 29) / 2300(band 30) 3G Bands: UMTS 1900 / 2100 / 850 / 900 MHz 2G Bands: GSM 1800 / 1900 / 850 / 900 MHz GPRS: Available EDGE: Available
• Wi-Fi Features Wi-Fi Direct, Mobile Hotspot
• USB Connectivity Mass storage device, USB charging
• VoLTE Yes
• SIM Slot(s) Dual SIM, GSM+GSM
• Network Support 5G Supported in India, 4G Supported in India, 3G, 2G
• NFC Yes
• SIM 1 5G Bands: FDD N1 / N2 / N3 / N5 / N7 / N8 / N12 / N20 / N25 / N28 TDD N38 / N40 / N41 / N66 / N71 / N77 / N78 / N79 4G Bands: TD-LTE 2600(band 38) / 2300(band 40) / 2500(band 41) / 2100(band 34) / 1900(band 39) / 3500(band 42) FD-LTE 2100(band 1) / 1800(band 3) / 2600(band 7) / 900(band 8) / 700(band 28) / 1900(band 2) / 1700(band 4) / 850(band 5) / 700(band 13) / 700(band 17) / 850(band 18) / 850(band 19) / 800(band 20) / 1900(band 25) / 850(band 26) / 700(band 29) / 2300(band 30) 3G Bands: UMTS 1900 / 2100 / 850 / 900 MHz 2G Bands: GSM 1800 / 1900 / 850 / 900 MHz GPRS: Available EDGE: Available
• Bluetooth Yes, v5.2
• GPS Yes with A-GPS, Glonass
• SIM Size SIM1: Nano, SIM2: Nano

• Performance
• RAM type LPDDR5
• Graphics Adreno 660
• Architecture 64 bit
• RAM 18 GB
• Fabrication 5 nm
• RAM Type LPDDR5
• CPU Octa core (2.84 GHz, Single core, Kryo 680 + 2.42 GHz, Tri core, Kryo 680 + 1.8 GHz, Quad core, Kryo 680)
• Chipset Qualcomm Snapdragon 888

• Sensors
• Other Sensors Light sensor, Proximity sensor, Accelerometer, Compass, Gyroscope
• Fingerprint Sensor Yes
• Fingerprint Sensor Position On-screen
• Fingerprint Sensor Type Optical

• Storage
• Storage Type UFS 3.1
• USB OTG Yes
• Internal Memory 512 GB
