Motorola Edge 40

Motorola Edge 40 Specifications

• Audio
• Loudspeaker Yes
• Audio Jack USB Type-C
• Stereo Speakers Yes
• Audio Features Dolby Atmos

• Battery

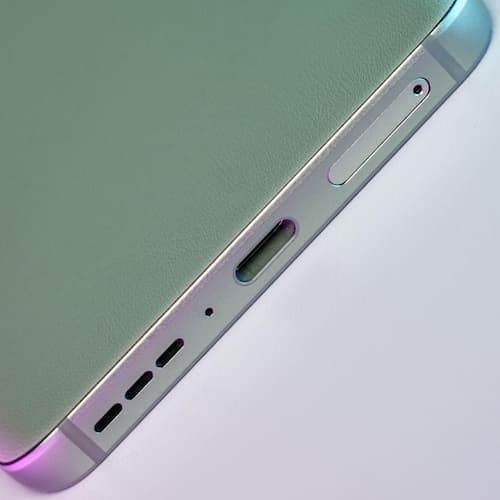

• USB Type-C Yes
• Wireless Charging Yes
• Removable No
• Quick Charging Yes, Turbo Power, 68W
• Capacity 4400 mAh
• Type Li-Polymer

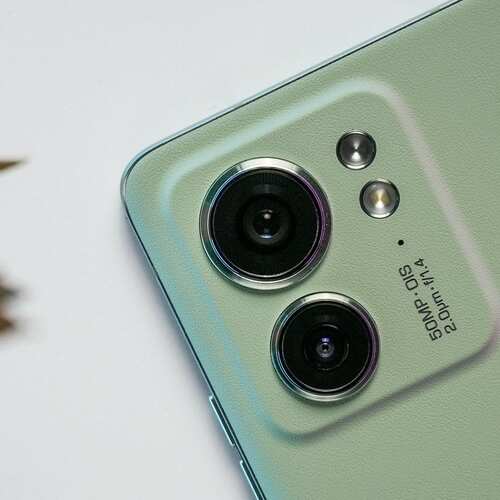

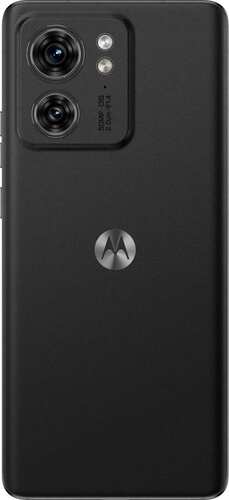

• Camera
• Rear Camera 50 MP + 13 MP
• Shooting Modes Continuous Shooting High Dynamic Range mode (HDR) Burst mode
• Flash Yes, Dual LED Flash
• Front Camera 32 MP
• Video Recording 3840x2160 @ 30 fps 1920x1080 @ 30 fps
• Image Resolution 8150 x 6150 Pixels
• Autofocus Yes, Phase Detection autofocus

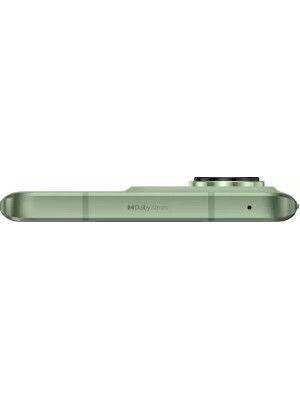

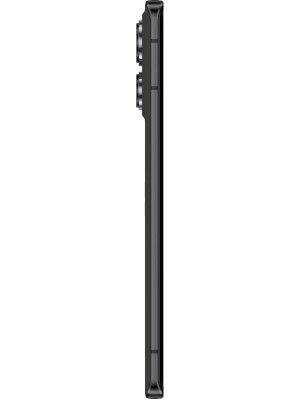

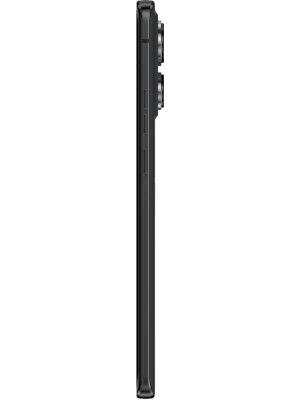

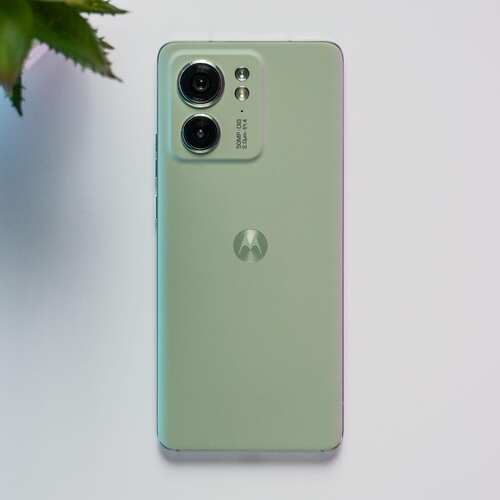

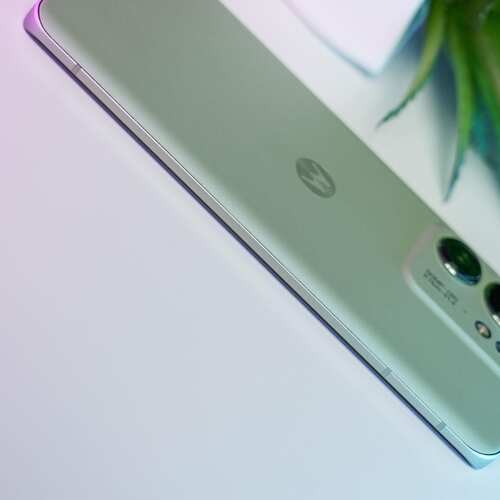

• Design

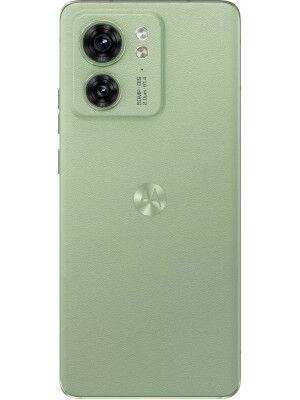

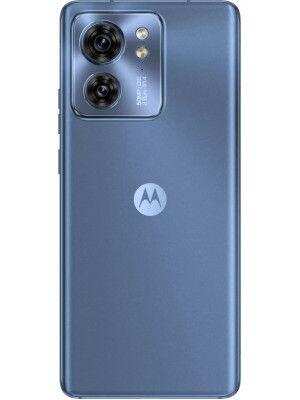

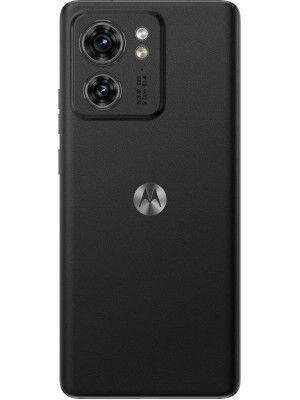

• Colours Nebula Green, Lunar Blue, Eclispe Black, Viva Magenta
• Ruggedness Dust proof
• Weight 167 grams

• Dimensions
• Height 158.4 mm
• Thickness 7.4 mm
• Width 71.9 mm

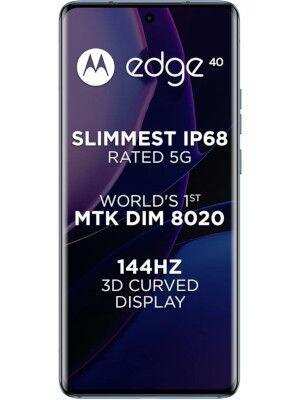

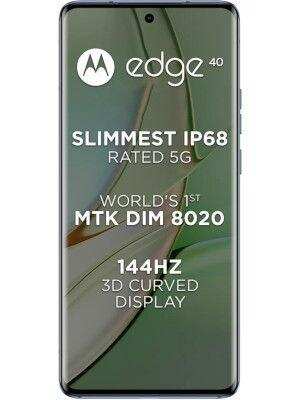

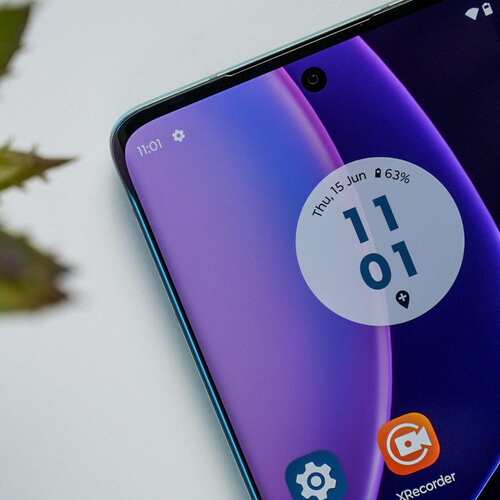

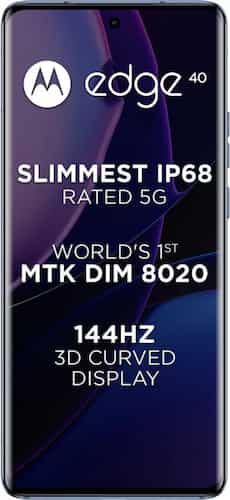

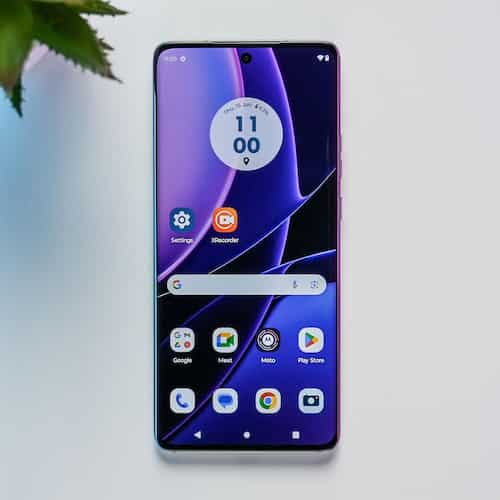

• Display
• Screen Size 6.55 inches (16.64 cm)
• Screen to Body Ratio (claimed by the brand) 92.7 %
• Bezel-less display Yes with punch-hole display
• Brightness 1200 nits
• Refresh Rate 144 Hz
• Aspect Ratio 20:9
• Pixel Density 402 ppi
• Display Type P-OLED
• Resolution 1080x2400 px (FHD+)

• General
• Brand Motorola
• Launch Date May 30, 2023
• Operating System Android v13
• SAR Value Head: 1.18 W/kg, Body: 1.26 W/kg

• Network & Connectivity
• SIM 1 5G Bands: FDD N1 / N2 / N3 / N5 / N7 / N8 / N20 / N28 TDD N38 / N40 / N41 / N66 / N77 / N78 4G Bands: TD-LTE 2600(band 38) / 2300(band 40) / 2500(band 41) / 1900(band 39) / 3500(band 42) / 3700(band 43) FD-LTE 2100(band 1) / 1800(band 3) / 2600(band 7) / 900(band 8) / 700(band 28) / 1900(band 2) / 1700(band 4) / 850(band 5) / 700(band 13) / 700(band 17) / 800(band 20) / 850(band 26) 3G Bands: UMTS 1900 / 2100 / 850 / 900 MHz 2G Bands: GSM 1800 / 1900 / 850 / 900 MHz GPRS: Available EDGE: Available
• Network Support 5G Supported in India, 4G Supported in India, 3G, 2G
• Bluetooth Yes, v5.2
• SIM Slot(s) Dual SIM, GSM+GSM
• Wi-Fi Yes, Wi-Fi 6 (802.11 a/b/g/n/ac/ax) 5GHz
• VoLTE Yes
• NFC Yes
• SIM 2 5G Bands: FDD N1 / N2 / N3 / N5 / N7 / N8 / N20 / N28 TDD N38 / N40 / N41 / N66 / N77 / N78 4G Bands: TD-LTE 2600(band 38) / 2300(band 40) / 2500(band 41) / 1900(band 39) / 3500(band 42) / 3700(band 43) FD-LTE 2100(band 1) / 1800(band 3) / 2600(band 7) / 900(band 8) / 700(band 28) / 1900(band 2) / 1700(band 4) / 850(band 5) / 700(band 13) / 700(band 17) / 800(band 20) / 850(band 26) 3G Bands: UMTS 1900 / 2100 / 850 / 900 MHz 2G Bands: GSM 1800 / 1900 / 850 / 900 MHz GPRS: Available EDGE: Available
• GPS Yes with A-GPS, Glonass

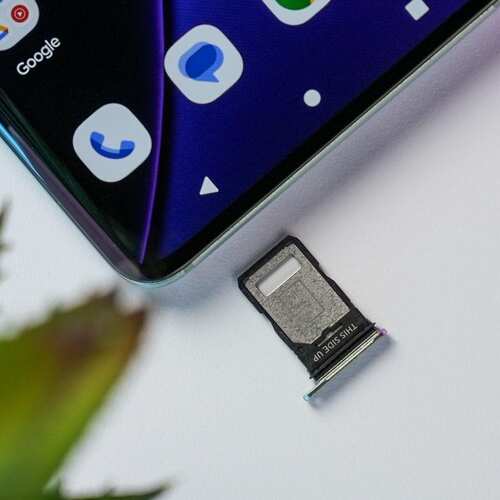

• SIM Size SIM1: Nano, SIM2: eSIM

• Performance
• Processor MediaTek Dimensity 8020
• Graphics Mali-G77 MC9
• RAM 8 GB
• RAM Type LPDDR4X

• Sensors
• Other Sensors Light sensor, Proximity sensor, Accelerometer, Compass, Gyroscope

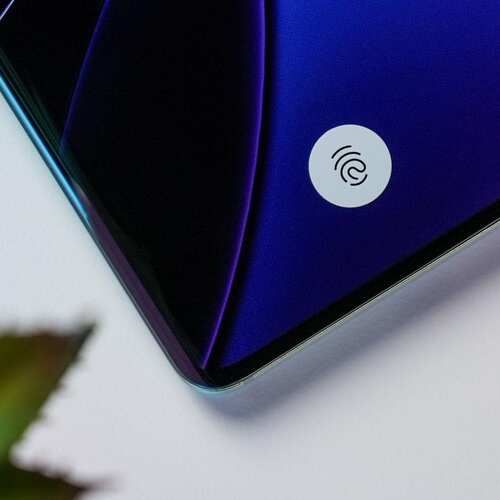

• Fingerprint Sensor Yes

• Storage
• Internal Memory 256 GB
• Expandable Memory No
• Storage Type UFS 3.1
